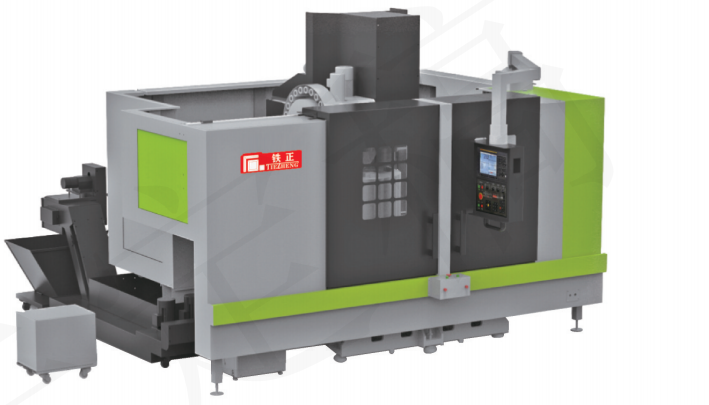

VSF950
Description
Specifications/Model | Unit | VSF950 |
Job Content | ||
Table Size | MM | 900*500 |
Number of Tables | N | 2 |
X-axis Travel(Left/Right) | MM | 2200 |
Y-axis Travel(Front/Back) | MM | 550 |
Z-axis Travel(Up/Down) | MM | 500 |
Spindle Nose to Table Distance | MM | 150-700 |
Spindle Center to Column Guide Distance | MM | 700 |
Maximum TableLoad Capacity | KG | 700 |
Spindle/Tool Magazine Specifications | ||
Number of spindles | N | 2 |
Spindle Center Distance | MM | 450��0.03 |
Spindle Drive Structure(Standard) | N | Belt Drive |
Spindle Taper | I50 | BT40 |
Spindle Speed | RPM | 8000 |
Spindle Motor Power | KW | 11 |
Spindle Drive Structure(Optional) | / | Direct Drive |
Spindle Speed | RPM | 12000 |
Tool Magazine Structure | / | Arm-Type |
Tool Magazine Capacity | PCS | 24 |
Tool Change Time | 5 | 2.3 |
Maximum Tool Weight | KG | 8 |
Maximum Tool Length | MM | 300 |
Feed Specifications | ||
��/Y/Z G00Rapid Feedx/Y/Z | M/MIN | 26/48/48 |
G01Cutting Feed | MM/MIN | 1-10000 |
Servo Motor specifications X/Y/Z | N.m | 22/12/22B/22B |
X/Y/Z Servo Motor SpeedX/Y/Z | RPM | 3000 |
Motor Connection TypeX/Y/Z | Direct Coupling | |
Ball screw SpecificationsX/Y/Z | MM | 4016/5012 |
X-Axis Linear Guide Specifications | MM | 45Roller |
Y-Axis Linear Guide Specifications | MM | 45Roller |
Z-Axis Linear Guide Specifications | MM | 45Roller |
Axis Positioning Accuracy | MM | ��0.005/300 |
Repeatability | MM | ��0.003/300 |
Minimum Input Increment | MM | 0.001 |
Pneumatic and Hydraulic System | ||
Air Pressure | Mpa | 0.65 |
Lubricating Oil Capacity | L | 4 |
Power Supply Capacity | KW | 40 |
Coolant Tank Capacity | L | 350 |
Overall Dimensions | ||
Machine Weight(Approx) | 13.5 | |
Machine Length(Front to Back) | mm | 2700 |
Machine Width(Left to Right) | mm | 5200 |
Machine Height(Maximum) | mm | 2900 |
Chip Discharge Method(Standard)) | / | Screw+Chain Plate |
