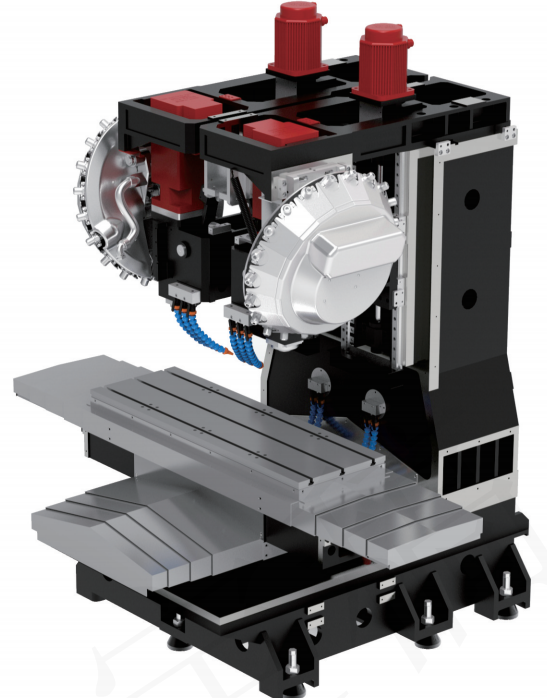

VTF640-2
Description
Specifications/Model | Unit | VTF640-2 |
Job Content | ||
Table Size | MM | 1300*420 |
Table Travel (X/Y/Z)(Left/Right) | MM | 700*400*350 |
Twin Spindle Center Distance | MM | 600 |
Spindle Nose to Table Distance | MM | 100-450 |
Spindle Center to Column Guide Distance | MM | 420 |
Maximum Table Load Capacity | KG | 350 |
Spindle Specifications | ||
Spindle Drive Structure | / | Direct Drive |
Spindle Speed(standard) | RPM | 20000 |
Optional Spindle Speed(Optional) | RPM | 12000、18000 |
Spindle Motor Power | KW | Rated 3.7 Max.5.5 |
Spindle Taper | ISO | BT30(D100) |
Feed Specifications | ||
G00 Rapid Feed X/Y/Z | M/MIN | 48/48/48 |
G01Cutting Feed | MM/MIN | 1-10000 |
Servo Motor Specifications | N.m | 12/12/22B/22B |
Servo Motor Speed | RPM | 3000 |
X/Y/Z Motor Connection Type X/Y/Z | / | Direct Coupling |
X/Y/Z Ball Screw Specifications X/Y/Z | MM | 2816/2816/3216 |
X-Axis Linear Guide Specifications | MM | 30Roller |
Y-Axis Linear Guide Specifications | MM | 30Roller |
Z-Axis Linear Guide Specifications | MM | 30Roller |
Axis Positioning Accuracy X/Y/Z | MM | ±0.005/300 |
Repeatability X/Y/Z | MM | ±0.003/300 |
Minimum Input Increment | MM | 0.001 |
ool Magazine System | ||
Tool Magazine Structure | / | Clamp Arm Type |
Tool Magazine Capacity | PCS | 21 |
Tool Change Time T-T | S | 0.8 |
Maximum Tool Weight | KG | 6 |
Pneumatic and Hydraulic System | ||
Air Pressure | Mpa | 0.65 |
Lubricating Oil Capacity | L | 4 |
Power upply Capacity | KW | 18 |
Coolant Tank Capaity | L | 220 |
Overall Dimenslons | ||
Machine weight | KG | 3600 |
Machine Length | mm | 1800 |
Machine Width | mm | 1600 |
Machine Height(Maximum) | mm | 2500 |
Chip Discharge Method | 1 | Rear Discharge |
