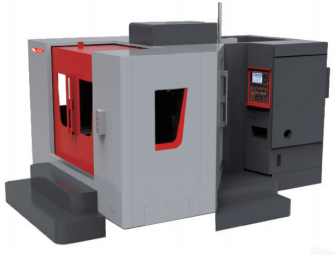

WH50A
Description
Specifications/Model | Unit | WH50A |
Job Content | ||
Worktable Surface Dimensions (Optiona) | MM | 500*500 |
Worktable Indexing (Standard) | ° | 0.001 |
Custom Worktable (Optional) | ° | 1、5、90 |
Maximum Rotational Diameter of Worktable | MM | 700 |
X-axisTravel | MM | 700 |
Y-axis Travel (Spindle Box Up-Down Movement) | MM | 600 |
Z-axls Travel | MM | 600 |
Distance from Spindle Center to Worktable Surface | MM | 110-910 |
Distance from Spindle End Face to Worktable Center | MM | 200-800 |
Worktabie (Slot Width *Number of Slots) | MM | 3-14 |
Threaded Holes(Optional) | MM | 24-M14 |
Worktable Load Capacity (Per Piece) | KG | 600 |
Spindle&Spindle Box Specfications | ||
Spindle Taper Hole | ISO | BT50-150 |
Spindle Belt Drive Speed (Standard/Optional | RPM | 6000 |
Variable Speed Gearbox Ratio (Optional) | N | / |
Electric Spindle HSK(Optional) | HSK | A63 |
Electric Spindle Speed | RPM | 18000 |
Feed System | ||
Axis Ball Screw Specifcations | MN | 40/40/40 |
G00 Rapid Traverse Speed | M/MIN | 32/24/24 |
G01 Cutting Feed | MM/MIN | 1-10000 |
B-axis Rapid Traverse Speed | M/mi | 15 |
X/Y/Z-axis Linear Guide specifications | MM | Roller 45/45/45 |
Motor connection Method | / | Direct Coupling |
Main Motor Parameters | KW | 11 |
X/Y/Z-axis Servo Motor Specifications | N.m | 22/22/22B |
B-axis Servo Motor Specifications | N.m | 8 |
Axis Positioning Precision | MM | 0.01 |
Axis Repetitive Positioning Precision | MM | 0.005 |
B-axis Positioning Precision | " | 10" |
B-axis Repetitive Positioning Precision | " | 3° |
Minimum Input Increment | MM | 0.001 |
Pneumatic and Hydraulic System | ||
Air Pressure | Mpa | 0.65 |
Coolant Tank Capacity | L | 450 |
Lubricating Oil Capacity | L | 4 |
Power Supply Capacity | KW | 35 |
Tool Holder/Tool Magazine System (Specify When Ordering) | ||
Tool Magazine Structure | / | Disc Arm Type |
Tool Magazine Capacity (Optional) | PCS | 24、32、40 |
Tool Magazine Storage Structure(Optional) | / | Chain Plate Type |
Tool Magazine Capacity | PCS | 40/50/60/80 |
TooL Change Time | S | 4.75/5.2 |
Maximum Tool Weight (Optional) | KG | 8/10 |
Maximum Tool/Adjacent Tool Clearance Diameter | MM | Ø110/Ø200 |
Overall Dimensions | ||
Machine WeightfApprox) | T | 5.5 |
Machine Length | MM | 3500 |
Machine Width | MM | 3100 |
Machine Height(Maximum) | MM | 3200 |
Machine Structure | / | T-type |
Chip Discharge Method | / | Twin Screw （Rear Discharge） |
