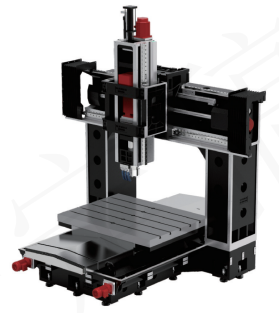

MC600
Description
Spcificatians/Model | Unit | MC600 |
Worktable Size (X-axis) | MM | 500 |
Worktable Size(Y-axis) | MM | 600 |
X-axis Travel(Front/Back) | MM | 500 |
Y-axis Travel (Left/Right) | MM | 700 |
Z-axis Tevel(Up/Down) | MM | 350 |
Gantry Width | MM | 650 |
Distance from spindle Nose to Worktable Surface | MM | 120-470 |
Number of T-Slots | MM | 16-5-100 |
Maximum Worktable Load Capacity | T | 700 |
Spindle/Tool Magazine 5pecifications | ||
Spindle Taper (Standard/Optional) | iso | BT40/HSK A63 |
Spindle Drive Structure | / | Permanent Magnet Motor Spindle |
Spindle Speed | RPM | 18000 |
Spindle Power | KW | 22 |
Tool Magazine Structure | / | Arm-Type |
TooL Magazine Capacity | PCS | 24/30/40 |
Tool Change Time | 5 | 2.3 |
Maximum Tool Diameter (Full/Empty Pocket) | MM | 80/150 |
Maxirmum Tool Length | MM | 300 |
Maximum Tool Weight | KG | 8 |
Feed Specificatlons | ||
G00 Cuttinging speed | M/MIN | 32/32/32 |
G01 Rapid Feed X/Y/Z | MM/NIN | 1-10000 |
Servo Motor Specifications | N.m | 15/15/15B |
Servo Motor speed | RPM | 4000 |
Motor Connection Type X/Y/Z | / | Direct Coupling |
Ball Screw Specifications(X/Y/Z Axis) | MM | 40/40/32 |
X Axis Linear Guide Specifications | MM | 45 Roller |
Y Axis Linear Guide Specifications | A | 45 Roller |
Z Axis Linear Guide Specifications | MM | 45 Roller |
Axis Positioning Accuracy | MM | ±0.01/500 |
Repeatability | MM | ±0.005/500 |
Minimum Input Increment | MM | 0.001 |
Pneumatic and Hydraulic system | ||
Lubricating oil Capacity | L | 4 |
Power Supply Capacity | Kw | 32 |
Coolant Tank Capacity | L | 270 |
Voltage Fluctuation | VAC | 380±5% |
Air Pressure | MPa | 0.65 |
Overall Dimensions | ||
Machine weight/Approx) | T | 3.8 |
Machine Length | MM | 1900 |
Machine width | MM | 1700 |
Machine Height(Maximum) | MM | 2600 |
Chip Discharge Method(Standard)) | / | Front Discharge |
Chip Discharge method(Optional) | / | / |
