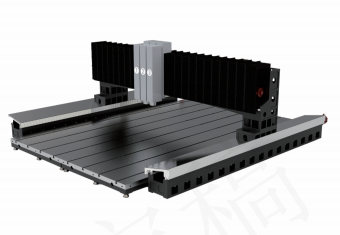

ME1100
Description
Specifications/Model | Unit | ME1100 |
Worktable Specifications | ||
Worktable Dimensions XY | MM | 100*1000 |
XY Axis Travel | MM | 1100*1100 |
Z Axis Tavel (Up-Down) | MM | 400 |
Distance from Spindle Nose to Worktable Surface | MM | 50-450 |
Maximum Worktable Load | KG | 2000 |
Spindle Specifications | ||
Spindle Motor Power | KW | 7.5 |
Number of lndependent Spindles | N | 1-2 |
Minimum Spindle Center Distance (Automatic) | MM | 250 |
Spindle Drive Structure | / | Gear Drive1：4.3 |
Spindle Speed | RPM | 0-2000 |
Spindle Bore Taper | IS0 | BT50 |
Feed Specifications | ||
G0 Rapid Feed (X/Y/Z Axis) | M/MIN | 32/32/32 |
G01 Cutting Feed | MM/MIN | 1-10000 |
Servo Motor Spcifications | N.m | 22/22/22B |
Servo Motor speed | RPM | 2000 |
X Axis Motor Connection Method | / | Diret coupling |
Y Axis Motor Connection Method | Direct Ccoupling | |
Z Axis Motor Connection Method | Direct Couplind | |
X Axis Ball Screw Specifications | MM | 4012 |
Y Axis Ball Screw Specifications | MM | 4012 |
Z Axis Ball Screw Specifications | MM | 4012 |
X Axis Linear Guide Specificatians | MM | 45 Roller |
Y Axis Linear Guide Specifications | MM | 45 Roller |
Z Axis Linear Guide Specifications | MM | Hard Rail |
A xis Positioning Accuracy | MM | ±0.03 |
Repeatability | MM | ±0.02 |
Minimum Increment | MM | 0.005 |
Tool Magazine system(optlonal) | ||
Tool Magazine Structure | Sleeve-type | |
Tool Magazine Capacity | PCS | 3/5 |
Tool Change Time | 5 | 3.2 |
Maximum Tool Weight | KG | 20 |
Pneumatic and Hydraulic System | ||
Air Pressure | Mpa | 0.65 |
Bed Block Height | MM | 50 |
Lubricating Oil Capacity | L | 4 |
Power Suply Capacity | KW | 18 |
Coolant Tank Capacity | L | 220 |
Overall Dimensions | ||
Machine weight | T | 8 |
Machine Length | MM | 1800 |
Machine Width | MM | 1800 |
Machine Height(Maximum) | MM | 2200 |
Chip Discharge Method(Optional) | 1 | Twin Screw |
