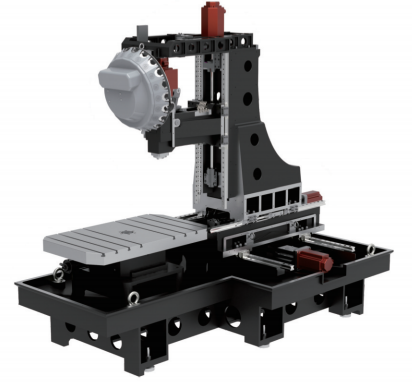

VTT544
Description
spectlcatlons/Model | Unit | VT544
DrllngkTapplng |
Job Content | ||
Table Size(Each/One of Two) | MM | 400��400 |
Travel(X/Y/Z) | MM | 550��400��350 |
Spindle Nose to Table Distance | MM | 150-500 |
Maximum TableLoad Capacity | KG | 250*2 |
Spindle/Tool Magazine Structure | ||
Spindle Specifcations | iSo | BT30 |
Spindle Drve Structure | / | Mechanical
Direct Drive |
Spindle Speed | RPM | 20000 |
Spindle Power | KW | 3,715.5 |
Tool Magazine Structure | / | Servo
ClampArm Type |
Taol Magazine Capacity | Pcs | 21 |
Taal Change Time(T-T) | 5 | 0.8 |
Maximum Tool weight | KG | 6 |
Maximum Tool Length | MM | 250 |
Feed specifcations | ||
G0O Rapid Feedx X/Y/Z | M/MIN | 48/48/48 |
G01 Ccuttng Feed | MM/MIN | 1-10000 |
Servo Motor specifications X/Y/Z | N.m | 22/22/22B |
Servo Mator Speed | RPM | 3000 |
Motor Connetian TypeX/Y/Z | Direct Coupling | |
Ball Screw SspecificationsX/Y/Z | MM | 4016/3216 |
X-Axis Linear Guide Specfications | MM | 45Roller |
Y-Axis Uinear Guide Specifications | MM | 35Roller |
Z-Axis Linear Guide Specfcations | MM | 35Roler |
Axis Postioning Accuracyx/Y/Z | MM | ��0.005/300 |
RepeatabiltyX/Y/Z | MM | ��0.05/300 |
Minimum input Iincrement | MM | 0.001 |
Pneumatic and Hydraulie System | ||
Air Pressure | Mpa | 0.65 |
Lubricating oil Capacity | L | 4 |
Power Supply Capacity | kw | 23 |
Coolant Tank Capacity | L | 250 |
Overall Dimensions | ||
Machine weight(ApprOx) | T | 6.3 |
Machine Length(Font to Back) | MM | 2750 |
Machine width(Left to Right) | MM | 1700 |
Machine Height(Maximum) | MM | 2600 |
Chip Discharge Method | / | Front
fush&rear
discharger |
