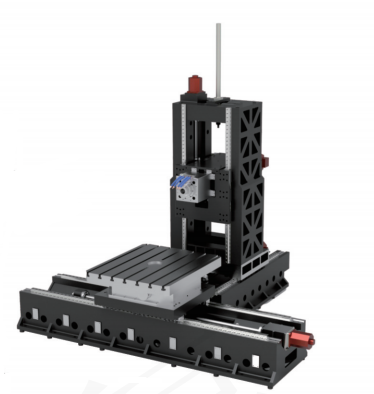

WB14A
Description
Specfications/Model | Unlt | WB14A |
Worktable Specfications | ||
Rotary Worktable Surface Dimensions | MM | 1400×1200 |
Rotary Table Structure (Standard) | ° | 0.001 |
Rotary Table Structure (Optional) | ° | 1、5、90 |
Rotary Table Load Capacity | T | |
Machine Structure | / | Inverted T-type |
X-axis Travel (Left-Right)(Standard/Optional) | MM | 2000/2500 |
Y-axis Travel (Spindle Box Up-Down) | MM | 1000/1500/2000 |
Calumn Front-Back Travel Z1 | MM | 1000/1500 |
Spindle Specifications | ||
Spindle Structure(A Standard) | ISO | BT50-190 |
Spindle Speed | RPM | 4000/6000 |
Spindle Motor | KW | 22 |
B-type Square Ram Front-Back Travel Z2 | MM | 600 |
Square Ram Specifications | MM | 360*360 |
Spindle Structure (B Optional) | 150 | BT50-190 |
Maximum Spindle Speed (Standard/Optional) | RPM | 3000/4000 |
Maximum Spindle Speed(Standard/Optional) | RPM | 4000/6000 |
C-type Boring Bar Front-Back Travel Z2 | MM | 600 |
Boring Bar Specifications | MM | 130 |
Maximum Spindle Speed(Standard/Optional) | RPM | 1200/2000 |
D-type Square Ram+Boring Bar Front-Back Travel Z3 | 400*400 | |
Boring Bar Specifications | MM | 110、130 |
Maximum Spindle Speed (Standard/Optional) | RPM | 1200/2000 |
Distance from Spindle End Face to Worktable Center | MM | 200-1400 |
Distance from spindle Center to Worktable Surface Height | MM | 100-1100/1600 |
Worktable T-Slot (Slot width ×Number of Slots) | / | 7-28 |
Spindle Drive | / | KF Variable Speed Gear Drive |
Spindle Mator | KW | 22、36 |
Feed Specifications | ||
X,Y Rapid Traverse Speed | M/MIN | 12/12 |
Z1,Z2 Rapid Traverse Speed | M/MIN | 12/20 |
Three-axis Motor Cannection Method | 1 | Direct Couping Type |
X/Y Axis Servo Motor Specications | N.m | 40/40B |
Z1/Z2 Axis Servo Motor Specicatians | N.m | 40/22 |
X-axis Linear Guide Specfications | MM/N | Roller 55*2 |
Y-axis Linear Guide Specifications | MM/N | Roller 45*4 |
Z-axis Linear Guide Specifications | MM/N | 55 Roller*2+Hard Rail |
X/Y/Z 3-Axis Ball Screw Specifications | MM | 63/50/63 |
Square Ram or Boring Bar Ball Screw Specifications | MM | 40 |
Spindle Box Balance System | / | Nitrogen Balance |
Pneumatic and Hydraulic System | ||
Air Pressure | Mpa | 0.65 |
Coolant Tank Capacity | 450 | |
Lubricating Oil Capacity | 4 | |
Power Supply Capacity | KW | 55 |
Overall Dimensions | ||
Machine Weight(Approx) | T | 22/26 |
Machine Length(Front to Back)(Standard) | MM | 4000 |
Machine Width (Left to Right)(Standard) | MM | 6000 |
Machine Height (Maximum)(Standard) | MM | 4500 |
Chip Discharge Method | / | Twin Screw |
Chip Discharge Method | / | Chain Plate Type |
