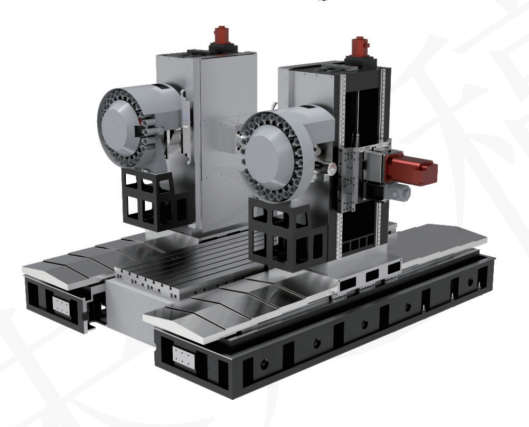

WK
Description
Specifications/Model | Unit | Customization Zone |
Worktable Specifications | ||
Worktable Load Capacity | T | 3-4-5-6 |
Worktable Width | MM | 1200-1400-1600-1800-4000 |
Worktable Length | MM | 2000-2500-3000-20000 |
X-axis Travel | MM | 2200-2700-3200-4200-20200 |
X-axis Guideway Structure | / | 55Linear Guide、65Linear Guide、45Linear Guide+Hard Rail |
X-axis Drive Structure | MM | Ball Screw(Within 8m),Rack&Pinion(Over 8m) |
X-axis Servo Motor Connection Method | / | Direct Coupling+Reducer |
X-axis Closed-Loop Linear Scale(Optional) | MM | Full Closed-Loop |
Y1,Y2 Axis Travel (Spindle Box Up-Down) | MM | 800-1200-1500-2000-8000 |
Y-axis Guideway Structure | / | 4 Linear Guides or Linear Guide+Hard Rail |
Y-axis Drive Structure | MM | Ball Screw 63/80/100 |
Y-axis Servo Motor Connection Method | / | Direct Coupling+Reducer |
Y-axis Closed-Loop Linear Scale(Optional) | MM | Full Closed-Loop |
Z-axis Structure(Customizable) | ||
Z-axis Column Travel | MM | 500、600、800、1000、2000 |
Column Guideway Structure | 55Linear Guide、65Linear Guide、45Linear Guide+Hard Rail | |
U-axis Ram Specifications | 360*400、400*500、500*600 | |
U-axis Ram Travel | 500、600、700、800、1000 | |
U-axis Servo Motor Connection Method | Direct Coupling | |
U-axis Drive Ball Screw | MM | 5012、6312 |
W-axis Boring Bar Specifications | MM | 110、130、160、210 |
W-axis Boring Bar Travel | MM | 550、650、750 |
W-axis Servo Motor Connection Method | Direct Coupling | |
W-axis Ball Screw Drive | MM | 5012 |
Distance from Spindle End Face to Worktable Center | MM | 150-6000 |
Distance from Spindle Center to Worktable Surface | MM | 150-10000 |
Spindle End Face Distance Range | MM | 150-8000 |
Main Spindle Motor Power(Continuous/30 min) | kw | 22、26、37 |
Maximum Spindle Output Torque | NM | 880、1100、1680、2550、3650 |
Worktable T-slot (Slot Width X Number of Slots) | / | 28*278 |
Spindle Parameters | ||
Spindle Model &Installation Dimensions | MM | BT50/190 |
Maximum Spindle Speed | RPM | 6000、4000、3000、1500 |
Spindle Drive Type | / | Variable Speed Gearbox |
Axis Parameters | ||
X Y Z1 Z2 Three-axis Power(X,Y,Z1,Z2) | Nm | 40/40B/22/22 |
Spindle Box Balancing System | / | Nitrogen Balance |
Air Pressure | Mpa | 0.65 |
Coolant Tank Capacity | L | 1000-1500-2000 |
Lubricating Oil Capacity | L | 4*2 |
Pneumatic and Hydraulic System | ||
Lubricating Oil Capacity | L | 4 |
Power Supply Capacity | KW | 60-150 |
Coolant Tank Capacity | L | 400 |
Voltage Fluctuation | VAC | 380±5% |
Air Pressure | Mpa | 0.65 |
Overall Dimensions | ||
Machine Weight(Approx) | T | / |
Machine Length (Including Worktable) | MM | / |
Machine Width(Left to Right) | MM | / |
Machine Height(Maximum) | MM | |
Chip Discharge Method | / | Twin Screw+Hinge Plate Chip Conveyor |
