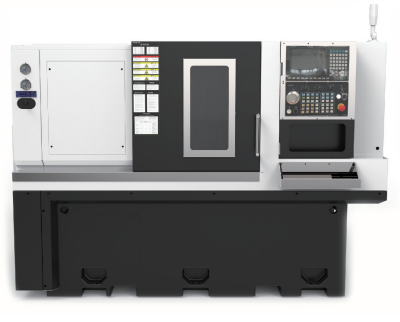

TT60-850
Description
Specifications/Model | Unit | TT60-850 | |
Processing Capability | Max. Swing Over Bed | mm | 620 |
Max. Cutting Diameter (Disc Type) | mm | 420 | |
Max. Cutting Diameter (Shaft Type) | mm | 280 | |
Max. Cutting Workpiece Length | mm | 800 | |
Bar Diameter | mm | 52/75 | |
Spindle | Spindle Nose Form | ASA | A2-6/A2-8 |
Dia Of Spindle Bore | mm | 66/86 | |
Max Spindle Speed | rpm | 2500 | |
Spindle Motor Power | kw | 11 | |
Hydraulic Chuck Size | Inch | 8/10 | |
Feed Axis | Maximum Travel Of X/Z Axis | mm | 210/850 |
X/Z-Axis Fast Movement Speed | m/min | 24/30 | |
X/Z-Axis Motor Power | kw | 2.4/2.4 | |
2.4 Standard Hydraulic Tailstock | Tailstock Shaft Diameter | mm | 72 |
Taper Of The Inner Hole Of The Tailstock | MT | MT5 | |
Tailstock Body Movement Amount | mm | 720 | |
Tailstock Shaft Travel | mm | 140 | |
Standard Servo Turret Optional Power Turret | Turret Model | 1001225 | |
Tools Number | T | 12 | |
Rectangular Tool Size | mm | 25*25 | |
Boring Tool Diameter | mm | 40 | |
Power Tool Holder Size | optional | BMT55-80 | |
Others | Machine Height | mm | 1700 |
Length*Width | mm | 2800*1650 | |
Weight | kg | 4500 | |
Sub-Spindle Optional | Movement Amount | mm | 550 |
Spindle Nose Form | ASA | A2-5 | |
Linear Rail Specification | mm | 35 Pin Roller | |
Ball Screw Specification | mm | 4008 | |
Motor Power | kw | 5.5 |
