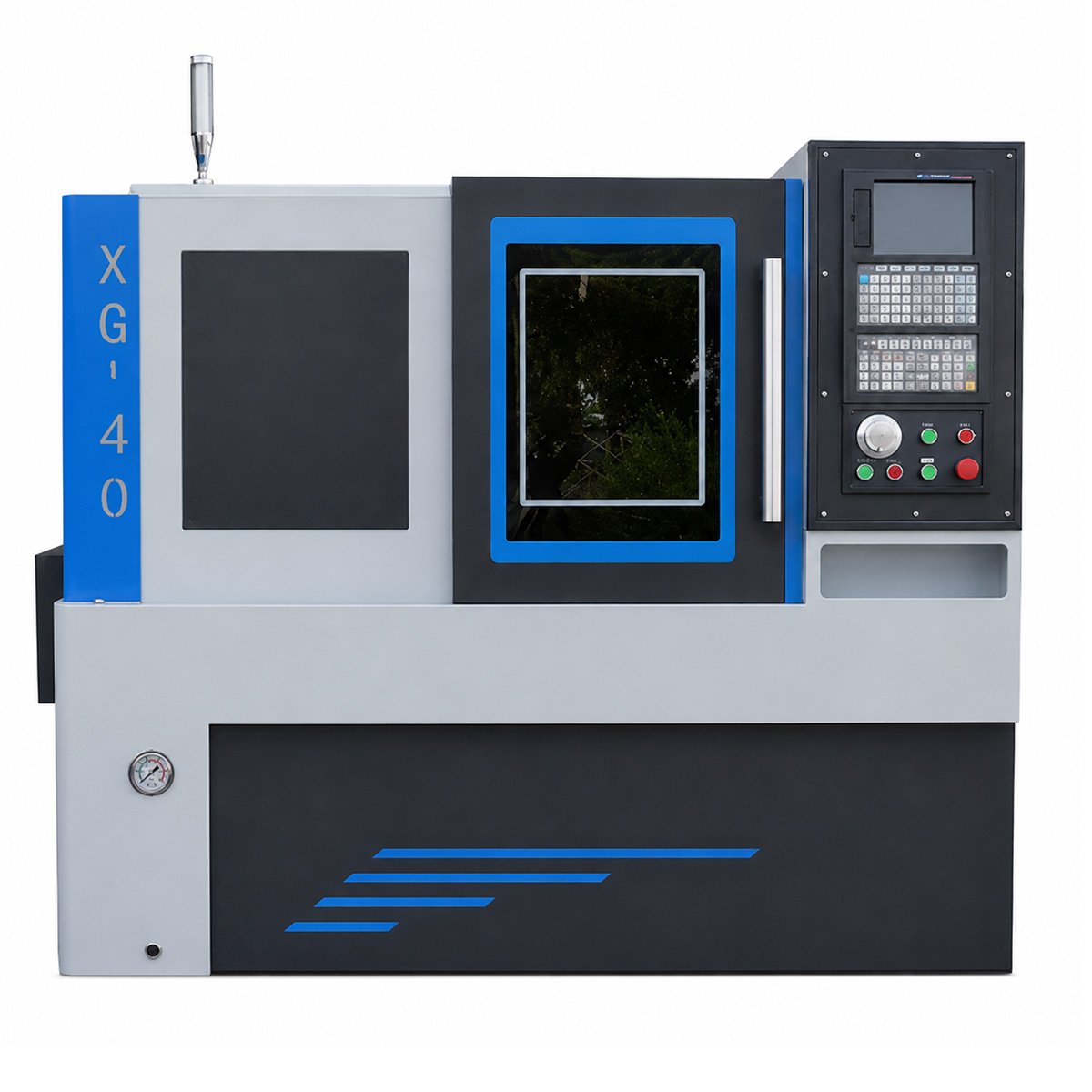

XG40/32
Description
Specifications
Specifications | Unit | XG40 (S/M) | XG32 |
Processing Capability | |||
Max. Swing Over Bed | mm | 400 | 380 |
Max. Cutting Diameter (Disc Type) | mm | 160 | 140 |
Max. Cutting Workpiece Length | mm | 310/290 | 280/Chuck O.D. 230 |
Bar Diameter | mm | 40/52 | 40 |
Spindle | |||
Spindle Nose Form | ASA | A2-5 | A2-5 |
Dia Of Spindle Bore | mm | 49/56 | 49 |
Max Spindle Speed | Rpm | 4500 | 4500 |
Spindle Motor Power | KW | 4/5.5 | 3 |
Hydraulic Chuck Size | Inch | 6 | 6 |
Feed Axis | |||
Maximum Travel Of X Axis | mm | 330, Bidirectional: 660 | 280, Bidirectional: 560 |
Maximum Travel Of Z Axis | mm | 320 | 300 |
X/Z-Axis Fast Movement Speed | m/min | 20/25 | 20/20 |
Gang Tool Post (Standard) | |||
Square Tool Size | mm | 20*20 | 20*20 |
Boring Tool Diameter | mm | Φ25 | Φ25 |
Optional 1 Servo Turret | |||
Servo Turret Specification | 63820 | / | |
Tools Number | T | 8 | / |
Others | |||
Machine Height | mm | 1700 | 1700 |
Length*Width | mm | 1920*1400 | 1680*1230 |
Height From Ground To Spindle Center | mm | 1130 | 1000 |
Weight | kg | 1800 | 1200 |
Chip Removal Direction | / | Back row | Back row |
